[Gmsh] Gmsh 2.2.5 crashes on use of 2nd order elements (no optimization)

[Roland Tollenaar]

Hi Jean-Francois,

> I see no problem here to generate 2nd order elements. Yet, I cannot see
Are you telling me that you cannot repeat the crashing?! Are you also

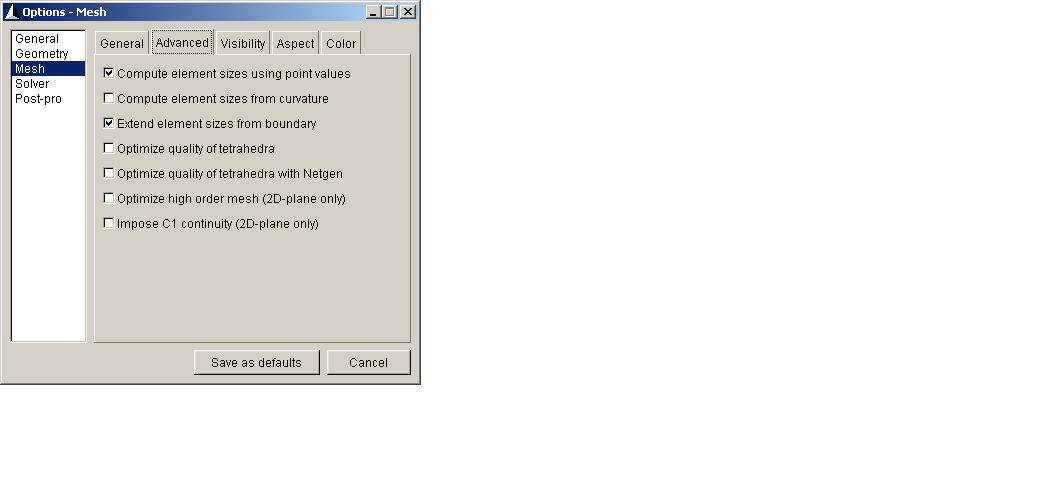

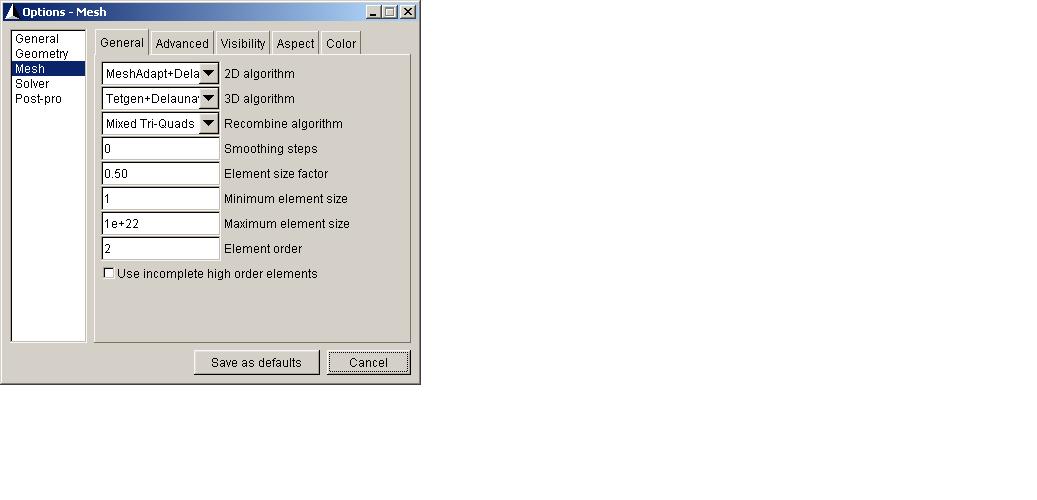

using version 2.2.5? I attached my settings because with me the meshing
operation crashes.

> how you can apply netgen optimizer on your
> structure : it is only composed of surfaces.
This is simple to explain. I am not well versed on the internal
operation of the netgen optimizer:). May I ask when it does make sense
to use the optimizer?

Regards,

Roland




>
> Jean-François.
>
>
>> Can someone comment on this? Attached is the model.
>>
>> Kind regards,
>>
>> Roland
>>
>>
>> Ruth V. Sabariego wrote:
>>> Your model seems to have only lines and points, that's why you don't
>>> see a 2D/3D mesh.
>>> The 1D mesh is done correctly.
>>>
>>> Ruth
>>>
>>> Roland Tollenaar wrote:
>>>> Hello,
>>>>
>>>> I have a model which fails to mesh. gmsh says its meshing it
>>>> (console) but nothing happens. (0s)
>>>>
>>>> I have seen this same behaviour with STL models previously and
>>>> simply assumed that gmsh could not handle stl files.
>>>>
>>>> However this is a step model of a type that gmsh previously did mesh
>>>> well.
>>>>
>>>> I have attached the model.
>>>>
>>>> Kind regards,
>>>>
>>>> Roland
>>>> ------------------------------------------------------------------------
>>>>
>>>>
