Hi all,

I just compiled 2.2.4 with opencascade support and now I can import .stp

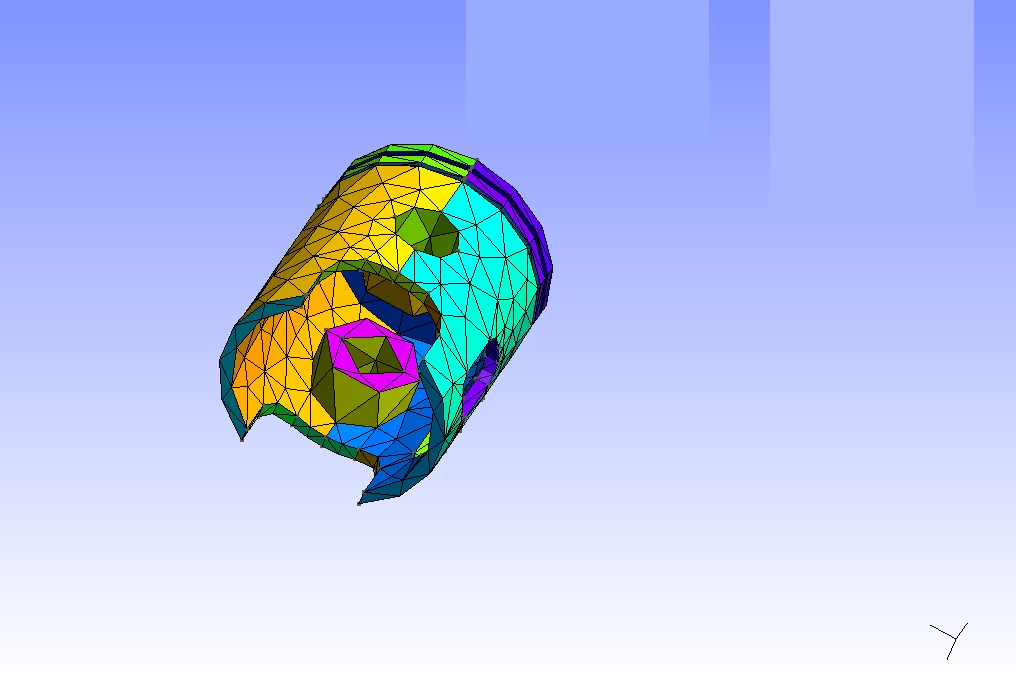

geometries. Then I tried a 'piston' example, the attached (piston.jpg,
piston.msh) is the result I got. But I noticed that it's very different
from the example in the gmsh home page
(http://geuz.org/gmsh/gallery/piston.png). Seems that my output is too
rough (the mesh elements are too big). What am I doing wrong? How to get
a more nice result like what is in the gmsh homepage?
