[Gmsh] Trouble in 3d meshing from a surface in both directions with Netgen

Hans Minnebo hans.minnebo at cenaero.be
Thu Aug 28 11:34:02 CEST 2008


Hello,

I am trying to mesh a cube, with a refined transfinite volume inside, I
have four interface surfaces.
When using Netgen, I have the nodal continuity on the inner surfaces,
but for one (n°28) I do not have the continuity of the elements.
Have you already encountered that kind of problem ? I tried versions
2.1.1 and 2.2.4.

I join the geo, msh, picture and options.

Yours,

Hans MINNEBO
-------------- next part --------------
An embedded and charset-unspecified text was scrubbed...
Name: .gmsh-options
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20080828/5ad519fe/attachment.ksh>
-------------- next part --------------
A non-text attachment was scrubbed...

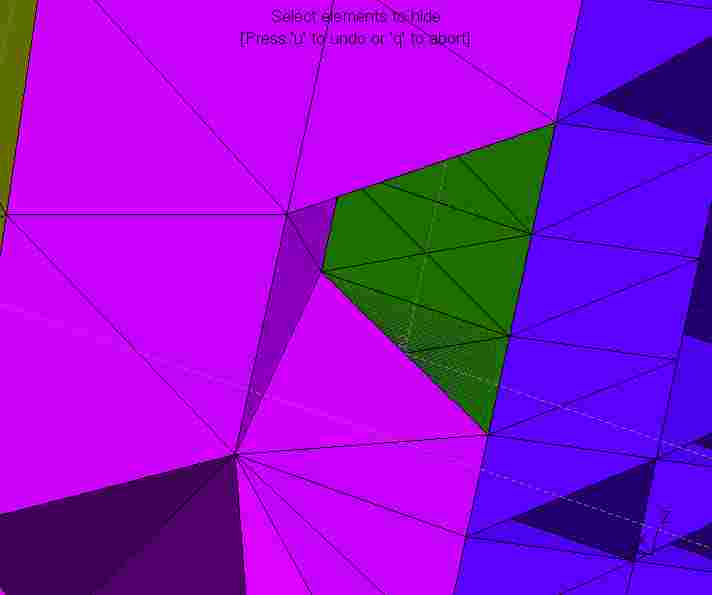

Name: problem_surface28.jpg
Type: image/jpeg
Size: 8997 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20080828/5ad519fe/attachment.jpg>
-------------- next part --------------
An embedded and charset-unspecified text was scrubbed...
Name: cube_refined_transfinite.geo
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20080828/5ad519fe/attachment.geo>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: cube_trans10_10.msh
Type: model/mesh
Size: 460967 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20080828/5ad519fe/attachment.msh>
