[Gmsh] Node numbering - Part II

Ricardo Reis da Silva rsilva at science.uva.nl
Fri Feb 22 17:26:56 CET 2008


Hi,

Maybe i can be a bit more specific with an example. I have used the following
geometry (file test.geo) and after meshing with second order the numbering of
the nodes is as depicted in "test.jpg". However, when i press save, the node
numbering changes for the one in figure "testaftersave.jpg". And that is the
numbering i obtain in the .msh file.

Is there a way to keep the "correct" node numbering ? I'm using Gmes - Windows
version.

Thank you

Regards,
Ricardo



-------------- next part --------------
A non-text attachment was scrubbed...
Name: testaftersave.jpg
Type: image/jpeg
Size: 28404 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20080222/c4aecf23/attachment.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

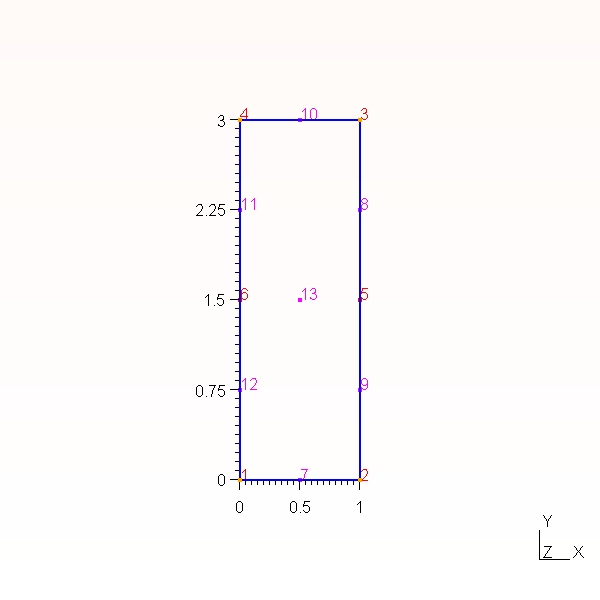

Name: test.jpg
Type: image/jpeg
Size: 28155 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20080222/c4aecf23/attachment-0001.jpg>
-------------- next part --------------
An embedded and charset-unspecified text was scrubbed...
Name: test.geo
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20080222/c4aecf23/attachment.geo>
