Hi Dave,

I just tried the BL extrusion command. Neat!
1st question: Is there any means to control the expansion ratio of the
cells within the extruded mesh?

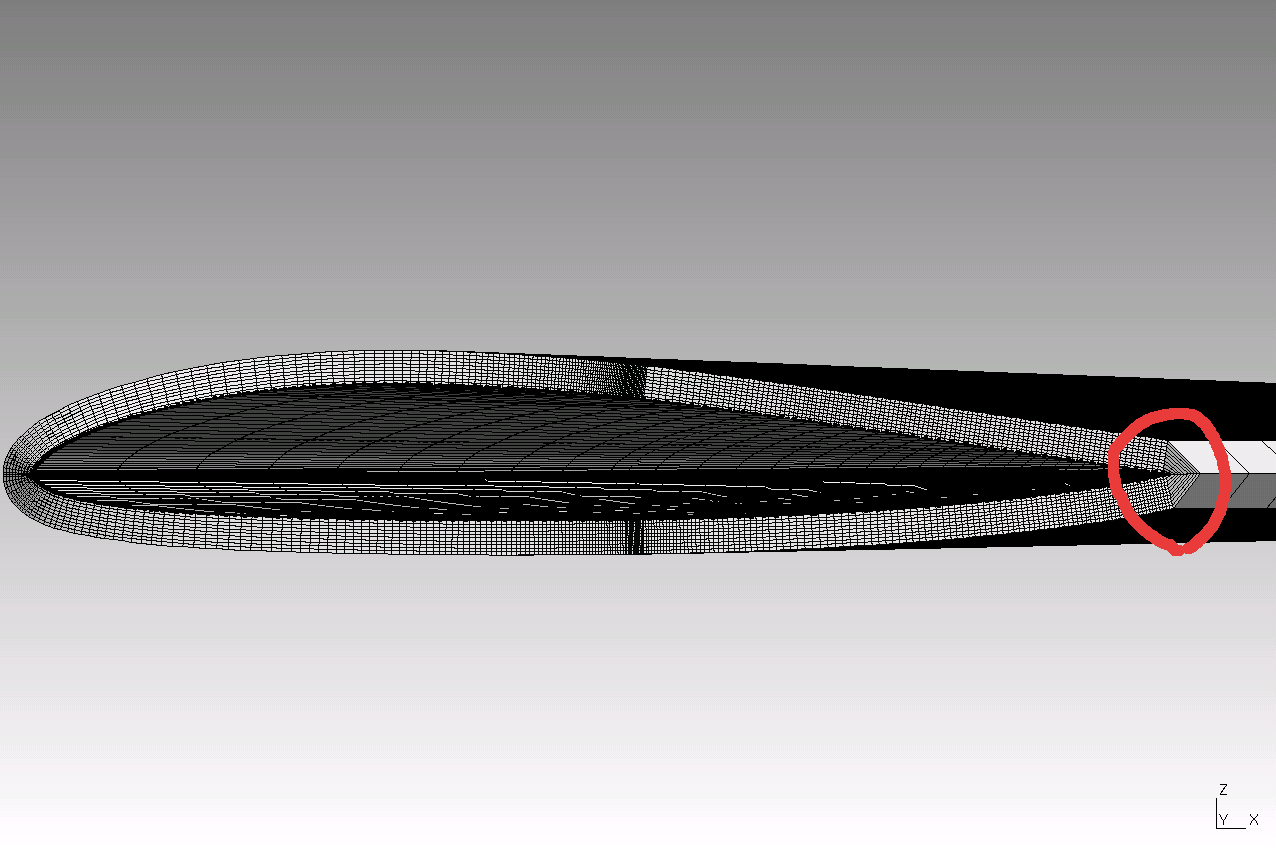

2nd question: How to avoid the collapsing of the upper and lower layers
at the *sharp* trailing edge of an airfoil (see pic attached)? Ideally I
would like to extend those layers in the wake. I tried to append a wake
surface (in fact a wedge with a very thin apex angle) to the trailing
edge and grow a BL mesh on it, but didn't work, I still have the same
problem at the trailing edge. Any idea?

Cheers,

Patrick




David Colignon wrote:

>
>
> Patrick Bourdin wrote:
>
>> spot on Dave!
>>
>> my mistake indeed, there was a typo in tmp2.geo: some colons were
>> used in lieu of commas in the transfinite line expression-lists,
>> definitively not the intended effect, I should stop gmsh-scripting
>> late at night ;-)
>>
>> thx again,
>>
>> Patrick
>
>
>
> De nada.
>
> Your geometry and your scripts are very nice !
>
> Do you know that we have a new _experimental_ boundary layer command :
>
> http://www.geuz.org/gmsh/doc/texinfo/gmsh-full.html#SEC36
>
>
> Extrude { Surface { expression-list }; layers }
>    Extrudes a boundary layer along the normals of the specified surfaces.
>
>
> Here is a small example (t1_boundary_layer.geo).
>
> Dave
>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: testBL.png
Type: image/png
Size: 44759 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20070515/8a22ae5f/attachment.png>
