[Gmsh] question gmsh-2.0.7

[Marcela Cid Alfaro]

Hi,

   I am a gmsh user and I used to work with the version  1.63.2.
But I downloaded now the version 2.0.7 and I found out that this version
is much faster in creating the mesh of problems with a large amount of
elements , wich is great!! I reduced from about 25 min. to more or less 1
min. for a mesh of around 10700 2D quadratic elements.

   But I found out a little problem (for me) because I used the output
file of gmsh to create another mesh file where I insert interface
elements in between all continuum elements.

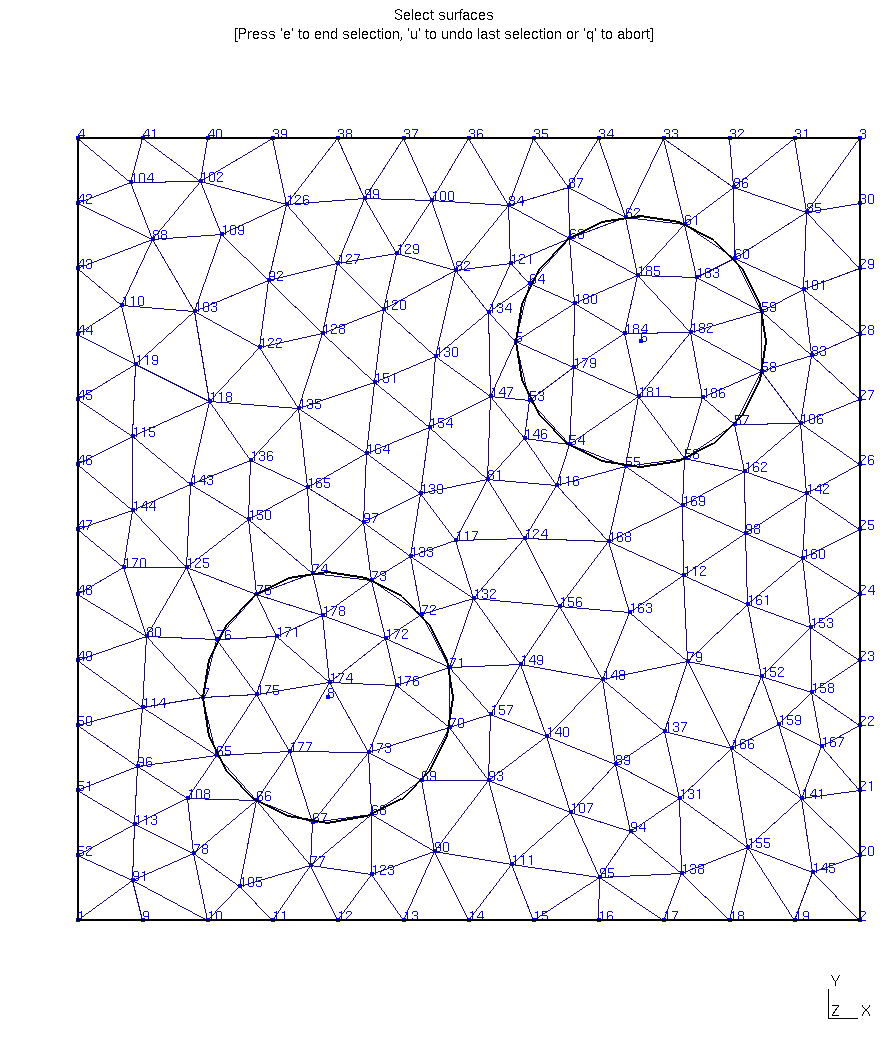

    For example I want to generate a mesh of a plate which have two
circles inside of a different material. The problem is that gmsh
creates a node in the point which correspond to the center of the
circunferences and those nodes don't belong to any element. Moreover,
those nodes are included in the .msh file.

  Is there any way to avoid that?

Just in case. I attached here a small file that I made to illustrate the
problem I just explained in this email.

Thanks a lot for your program and your help!

Regards,


Marcela Cid Alfaro
--------------------------------
Faculty of Aerospace Engineering
Engineering Mechanics Group
Delft University of Technology
Kluyverweg 1, 2629 HS Delft,
The Netherlands
Tel: +31 15 278 6380
Fax: +31 15 261 1465
http://www.em.lr.tudelft.nl
--------------------------------

-------------- next part --------------
A non-text attachment was scrubbed...
Name: cohsurface.geo
Type: application/octet-stream
Size: 689 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20070417/94f03e9c/attachment.geo>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: cohsurface.msh
Type: model/mesh
Size: 16918 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20070417/94f03e9c/attachment.msh>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: mesh.png
Type: image/png
Size: 55456 bytes
Desc: not available
URL: <http://www.geuz.org/pipermail/gmsh/attachments/20070417/94f03e9c/attachment.png>
