[Getdp] 2D axisym. coil

[Peter Kis]

Dear getDP list members,

I am still struggling with my first model in getDP, which would be a single
turn coil on 2D axisymmetric plane.

Now, at least I get something, but I don't like what I get. I am not sure
how to apply the time dependent excitation current density to the coil.
Therefore I took something over from CoreMassive model (found on the
Internet).

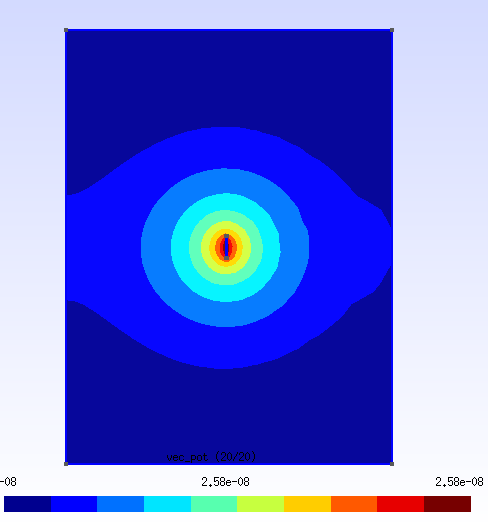

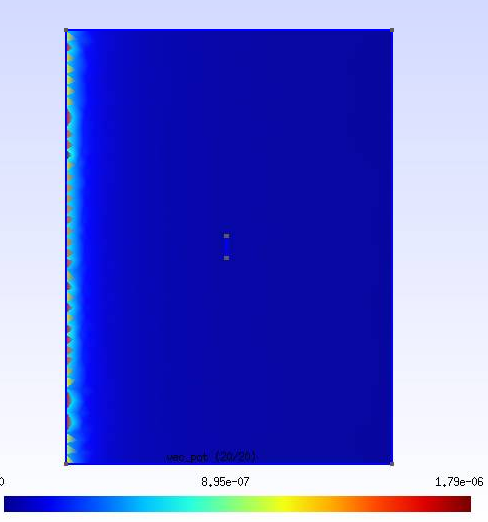

As you can see in the attached pictures the magnetic vector potential for
the pure 2D model (with Jac Vol) looks good but for the axisym model (with
Jac VolAxi) it looks terrible.

Definitely there is still something here what I miss.

Any comment is highly appreciated.

Thanks in advance,

Peter
