[Getdp] waveguide3D_rectangle: Questions

[Danny Holstein]

All,

I was running the referenced example and am getting non-physical results. Namely, if we're exciting a TE10 mode and also comfortably over the cutoff frequency, S21 should be nearly 1 and S11 should be near 0, not the results we see here.

The example is lifted unchanged from http://onelab.info/wiki/Waveguides, I click on the GEO file, merge the PRO file, adjust the parameters as you see here and then run.

Is this example properly formulated or am I doing something wrong?

Regards,
Dan


-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.geuz.org/pipermail/getdp/attachments/20141120/73d44d09/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...

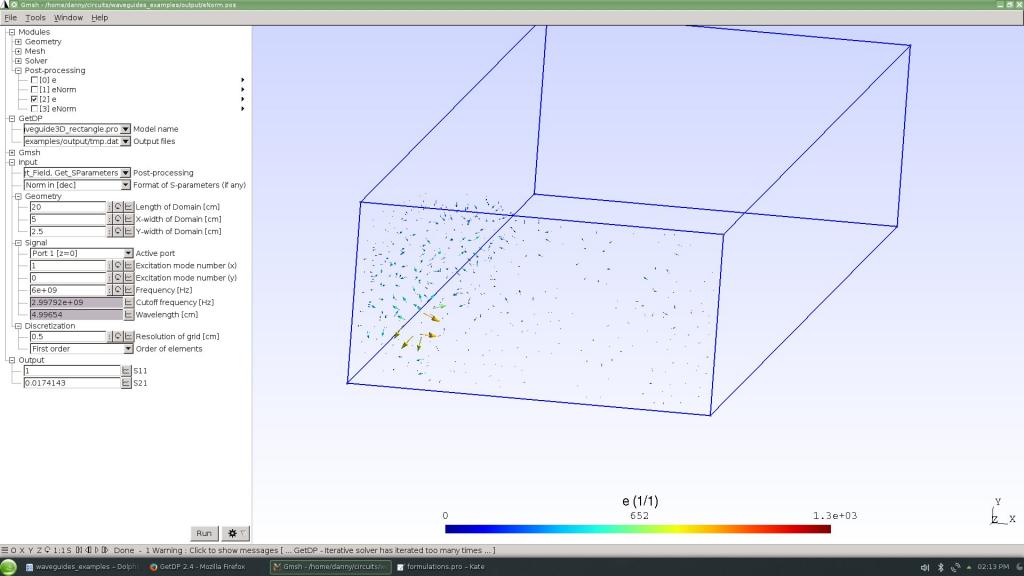

Name: getdp_wg.jpeg
