Hello,

finaly, the model of my PMSM is running in GetDP (but it runs only for 1
rotation and an eighth before GetDP stops with an error).
I had to modify the formulation in 'machine_magstadyn_a.pro' like this :

//JFr      GlobalTerm { [ Dof{Ub}/SymmetryFactor , {Ib} ] ; In DomainB ; }
       GlobalTerm { [ Dof{Ub} , {Ib} ] ; In DomainB ; } //JFr

Before the modification, there was no armature reaction and the voltage
on the terminals of the load resistor was not correct.

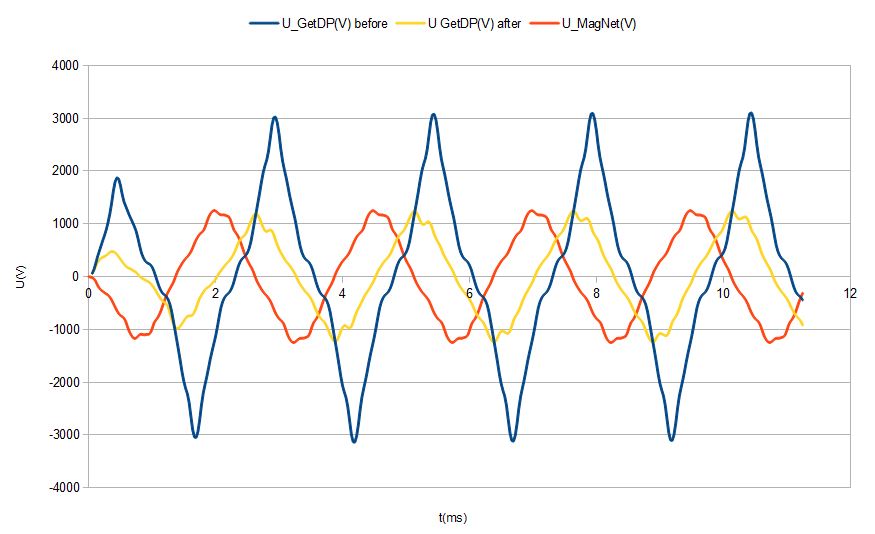

A picture ('results_after_modification.JPG') showing a comparison of the
result with MagNet is attached to this message.  It shows the effect of
the modification.

Joseph


--
