[Getdp] rectangular solenoid : current density?

Stefaan Vanheesbeke svhb at pandora.be
Sun Apr 19 23:24:00 CEST 2009


Hi,

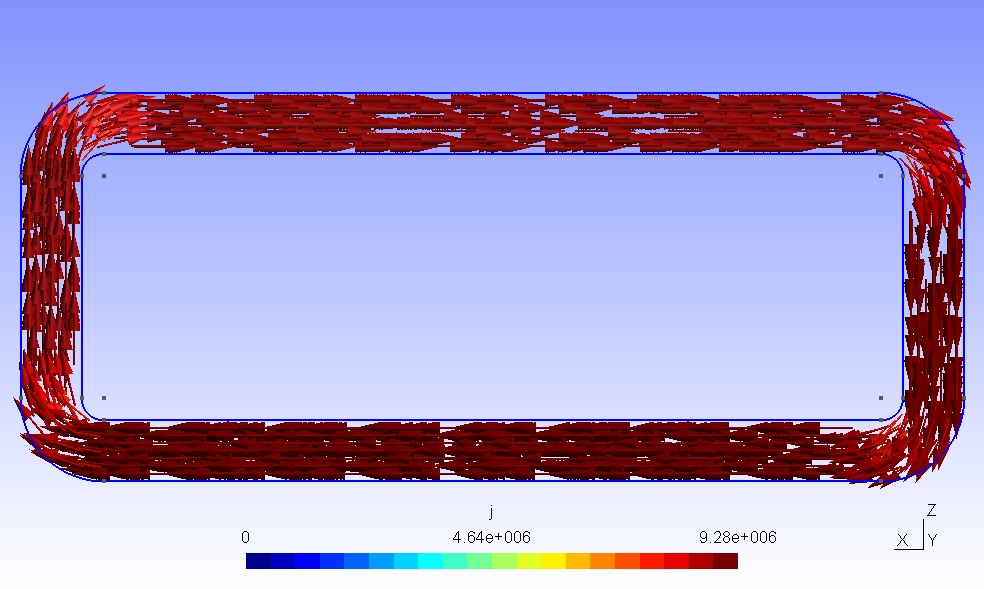

I could improve the situation a lot with changing the decision formulas for
 the areas, and with adding a radius to the inner corners. There is still a
 small difference in current density at the corners, but I think this will
 not generate a big error in my simulations. (see current_density.jpg). The
 error changes with the size of the mesh elements.

 The need for the 'delta' variable in the decision formulas seems to be a
bit
 strange to me. (see solenoid.pro)

 Is someone aware of a simpler method to accomplisch this?

 Stefaan


> ----- Original Message -----
> From: <svhb at telenet.be>
> To: <getdp at geuz.org>
> Sent: Saturday, April 18, 2009 11:16 PM
> Subject: [Getdp] rectangular solenoid : current density?
>
>
> Hi,
>
> I'm doing a rectangular solenoid to use in a bigger project. What suprises
> me is that the resulting current density in the post processing is not
> egal
> and has vectors pointing wrong directions (see jpeg).
>
> I think my equations are correct (I hope). So I don't know where the other
> values come from.
>
> Can someone explain to me?
>
> The included files are the ones I used to generate the jpeg. solenoid.geo
> is
> the root file, the others are included.
>
> Stefaan
>
>
>
>
> --------------------------------------------------------------------------------
>
>
>> _______________________________________________
>> getdp mailing list
>> getdp at geuz.org
>> http://www.geuz.org/mailman/listinfo/getdp
>>
>
>
> --------------------------------------------------------------------------------
>
>
>
> No virus found in this incoming message.
> Checked by AVG - www.avg.com
> Version: 8.0.238 / Virus Database: 270.12.0/2066 - Release Date: 04/18/09
> 09:55:00
>


--------------------------------------------------------------------------------



No virus found in this incoming message.
Checked by AVG - www.avg.com
Version: 8.0.238 / Virus Database: 270.12.0/2066 - Release Date: 04/18/09
09:55:00
